Web Browsers - Chrome Screen Scraper

Composed of two parts.

Parser
SaverApp

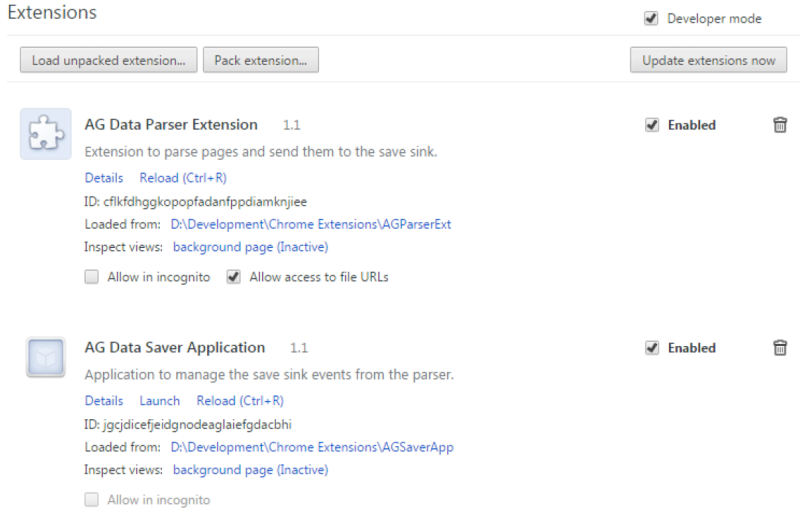

Load the two extension files into Chrome

To load these into chrome, you will need to go to the settings menu, choose more tools and then extensions.

Tick the “Developer Mode” box that you see, this will allow you to load unpacked extensions.
Click on the button “Load unpacked extension” and navigate to the directory where the Parser files exist.
Click on the button “Load unpacked extension” and navigate to the directory where the SaveApp files exist.

Parser

index.html

index.html

<!DOCTYPE html>
<html>
<head>
  <meta charset="utf-8">
  <link href="main.css" rel="stylesheet">
</head>

<body>
  <h3>Data Parser</h3>
  <label>Parser ID is <input id="appid" type="text"  readonly></input></label>
  <div>
    <label for="sendId">Destination ID</label>
    <input id="sendId" type="text"></input>

    <button id="saveID">Save ID</button>
    <button id="process">Start Process</button>
  </div>
  <div id="log"></div>

  <script src="index.js"></script>
</body>

</html>

main.css

main.css

input[type="text"] {
  width: 240px;
}

#log {
  background-color: rgb(226, 226, 250);
  padding: 10px 20px;
  margin-top: 10px;
  height: 300px;
  border: 1px solid black;
  overflow-y: scroll;
  overflow-x: hidden;
}

index.js

index.js

(function(context){
  document.getElementById("appid").value=chrome.runtime.id;
  var remoteAppID ="";
  var action ="";
  var pageIndex=null;
  console.log('Starting');
  var sendId;
  sendId=document.getElementById("sendId");

  chrome.storage.local.get('remoteappid',function (result) {
    console.log(result);
    remoteAppID=result.remoteappid;
    console.log('In Loop' +remoteAppID);
    sendId.value=remoteAppID;
  });

  var logField = document.getElementById("log");
  var save=document.getElementById("saveID");
  var process=document.getElementById("process");
  save.addEventListener('click', function() {
    var remoteID=sendId.value;
    appendLog("Saved");
    chrome.storage.local.set({'remoteappid': remoteID});
  });

  process.addEventListener('click', function() {
    pageIndex=1;
    chrome.tabs.query(
      { currentWindow: true, active: true },
      function (tabArray) {
        var activeTabId= tabArray[0];
        chrome.tabs.sendMessage(activeTabId.id, {text: 'report_back',pageIndex: pageIndex}, doStuffWithDom);
      }
    );
  });

  function doStuffWithDom(res) {
    var domContent=res.domContent;
    var pageIndex=res.pageIndex;

    //console.log('I received the following DOM content:\n' + domContent);

    chrome.runtime.sendMessage(
      sendId.value,
      {myCustomMessage: JSON.stringify(domContent),myAction : "save",myIndex : pageIndex},
      function(response) {
        appendLog("Remote Message : " + response.result);
        if (response.Success=="false"){
          console.log("Remote Error : " + response.result);
          appendLog("Remote Error : " + response.result);
        }else{
          chrome.tabs.query(
            { currentWindow: true, active: true },
            function (tabArray) {
              var activeTabId= tabArray[0];
              chrome.tabs.sendMessage(activeTabId.id, {text: 'process_next'},dealWithNextButton);
            }
          );
          console.log(response.result);
          appendLog(response.result);
        }
      })
    }

    chrome.runtime.onMessageExternal.addListener(
      function(request, sender, sendResponse) {
        appendLog("Remote Message : " + request.myResultAction);
        if (request.result=="false"){
          console.log("Remote Error : " + request.myResultAction);
          appendLog("Remote Error : " + request.myResultAction);
        }else{
          chrome.tabs.query(
            { currentWindow: true, active: true },
            function (tabArray) {
              var activeTabId= tabArray[0];
              chrome.tabs.sendMessage(activeTabId.id, {text: 'process_next'},dealWithNextButton);
            }
          );
          console.log(request.result);
          appendLog(request.result);
        }
      }
    );

    function dealWithNextButton(res){
      var result = res.success;
      if (result==false){
        appendLog("Finished.");
        pageIndex=null;
      }else{
        appendLog("Still Processing.");
      }
    }

    chrome.webNavigation.onDOMContentLoaded.addListener(function (details) {
      if (pageIndex !=null){
        pageIndex+=1;
        chrome.tabs.query(
          { currentWindow: true, active: true },
          function (tabArray) {
            var activeTabId= tabArray[0];
            chrome.tabs.sendMessage(activeTabId.id, {text: 'report_back',pageIndex: pageIndex}, doStuffWithDom);
          }
        );
      }
    }
  );

  function doInCurrentTab(tabCallback) {
  }


  var appendLog = function(message) {
    logField.innerText+="\n"+message;
  };

  context.appendLog = appendLog;
})(window)

content.js

content.js

  // Listen for messages
  chrome.runtime.onMessage.addListener(function (msg, sender, sendResponse) {
    console.log('got here');
    // If the received message has the expected format...
    if (msg.text === 'report_back') {
      // Call the specified callback, passing
      // the web-page's DOM content as argument
      var tbl = document.getElementsByName('table1')[0].innerHTML;
      //sendResponse(document.all[0].outerHTML);


      var rows = [];
      var result = [];
      $('table[name=table1]>tbody>tr').each(function(id){
        var row = {'id': id+1};
        if ($(this).find('td').length!=0){
          $(this).find('td').each(function(index){
            row[index] = $(this).text();
          });
          result.push(row);
        }
      });

      var retResult = ({'domContent': result,'tableContent': result,'pageIndex':msg.pageIndex});
      sendResponse(retResult);
    }
    if (msg.text === 'process_next') {
      var nextButton = $('[name="nextButton"]');
      if (nextButton.length>0){
        nextButton.trigger( "click" );
        var retResultS = ({'success':true});
        sendResponse(retResultS);
      }else{
        var retResultF = ({'success':false});
        sendResponse(retResultF);
      }
    }
  });

eventPage.js

eventPage.js

var blacklistedIds = ["none"];

chrome.runtime.onMessageExternal.addListener(
  function(request, sender, sendResponse) {
    appendLog("MSG RCV : " + request.myResultAction+' ' +request.myResultIndex);
    if (request.myResultAction=='Ok Saved :') {
      appendLog(request.myResultAction+' ' +request.myResultIndex);
      sendResponse({"result":"Ok, got your message"});
    } else {
      sendResponse({"result":"Ops, I don't understand this message :" + request.myResultAction});
    }
  }
);

mainfest.json

manifest.json

{
  "name": "AG Data Parser Extension",
  "version": "1.1",
  "description": "Extension to parse pages and send them to the save sink.",
  "browser_action": {
    "default_title": "Send message to other apps",
    "default_icon": "icon_16.png",
    "default_popup": "index.html"
  },
  "background": {
    "scripts": ["eventPage.js"],
    "persistent": false
  },
  "content_scripts": [{
    "matches": ["<all_urls>"],
    "js": ["content.js","jquery.js"],
    "run_at": "document_end"
  }],
  "permissions": [ "activeTab", "notifications","storage","webNavigation"],
  "manifest_version": 2
}

Save Sink Events

index.html

index.html

<!DOCTYPE html>

<html>
<head>
  <meta charset="utf-8">
  <link href="main.css" rel="stylesheet">
</head>

<body>
  <h3>Data Parser</h3>
  <label>Parser ID is <input id="appid" type="text"  readonly></input></label>
  <div>
    <label for="sendId">Destination ID</label>
    <input id="sendId" type="text"></input>
    <button id="saveID">Save ID</button>
    <button id="process">Start Process</button>
  </div>

  <div id="log"></div>

  <script src="index.js"></script>
</body>
</html>

main.css

main.css

input[type="text"] {
  width: 240px;
}

#log {
  background-color: rgb(226, 226, 250);
  padding: 10px 20px;
  margin-top: 10px;
  height: 300px;
  border: 1px solid black;
  overflow-y: scroll;
  overflow-x: hidden;
}

index.js

index.js

(function(context){
  document.getElementById("appid").value=chrome.runtime.id;

  var remoteAppID ="";

  chrome.storage.local.get('remoteappid',function (result) {
    remoteAppID=result.remoteappid;
    sendId.value=remoteAppID;
  });

  var logField = document.getElementById("log");
  var selectSave=document.getElementById("selectSave");
  var sendId=document.getElementById("sendId");
  var clearLog=document.getElementById("clearLog");
  var saveId=document.getElementById("saveId");

  saveId.addEventListener('click', function() {
    var remoteID=sendId.value;
    appendLog("Saved");
    chrome.storage.local.set({'remoteappid': remoteID});
    //alert (remoteID);
  });

  var chosenFileEntry=null;

  clearLog.addEventListener('click', function() {
    logField.innerText='';
  });

  errorHandler = function (obj) {
    sendResponse({"result":"Something Went Wrong."});
    console.log(obj);
  };

  selectSave.addEventListener('click', function() {
    chrome.fileSystem.chooseEntry({type: 'saveFile',
      suggestedName: 'output.csv'},

      function(writableFileEntry) {
        chosenFileEntry=writableFileEntry;

        writableFileEntry.createWriter(function(writer) {
          writer.seek(0);
          writer.truncate(0);
          writer.onwriteend = function(e) {
          };

          writer.write(new Blob(['0123456789'],
            {type: 'text/plain'}
          ));
        }, errorHandler);
      });
    });


    chrome.runtime.onMessageExternal.addListener(
      function(request, sender, sendResponse) {
        if (request.myAction) {
          appendLog("Action from "+sender.id+": "+request.myAction);
          //appendLog("Message from "+sender.id+": "+request.myCustomMessage);

          if (request.myAction=='save' && chosenFileEntry==null){
            sendResponse({"result":"No Save File Configured","Success":"false"});
          }

          if (request.myAction=='save' && chosenFileEntry!=null){
            var arrData = typeof JSONData != 'object' ? JSON.parse(request.myCustomMessage) : request.myCustomMessage;
            var CSV = '';

            for (var i = 0; i < arrData.length; i++) {
              var row = "";

              for (var index in arrData[i]) {
                //row += '"' + arrData[i][index] + '",';
                row +=  arrData[i][index] + ',';
              }

              row.slice(0, row.length - 1);
              CSV += row + '\r\n';
            }

            appendLog("Saving CSV : ");

            chosenFileEntry.file(function(file) {
              var reader = new FileReader();

              reader.onload = function(e) {
                var contents =e.target.result;

                if (request.myIndex==1){
                  contents='';
                  appendLog("Clearing Contents");
                }

                appendLog("Saving Index : " + request.myIndex);//+CSV);
                CSV=contents+CSV;

                chrome.fileSystem.getWritableEntry(chosenFileEntry,
                  function(writableFileEntry) {
                    writableFileEntry.createWriter(function(writer) {
                      writer.onwriteend = function(e) {
                        appendLog("Save Complete - Sending Message");
                        sendReply("true","Ok Saved :",request.myIndex);
                      };

                      chosenFileEntry.file(function(file) {
                        writer.write(new Blob([CSV],
                          {type: 'text/plain'}));
                      });
                    }, errorHandler);
                  });
                };

                reader.readAsText(file);
              });
            }
          } else {
            sendResponse({"result":"Ops, I don't understand this message :" + request});
          }
        });

        function sendReply(myResult,myResultAction,pageIndex){
          chrome.runtime.sendMessage(
            sendId.value,
            {result: myResult, myResultAction : myResultAction, myResultIndex : pageIndex},

            function(response) {
              console.log("response: "+JSON.stringify(response));
              appendLog("response: "+JSON.stringify(response));
            }
          )
        }

  var appendLog = function(message) {
    logField.innerText+="\n"+message;
  };


  context.appendLog = appendLog;
})(window)

manifest.json

manifest.json

{
  "manifest_version": 2,
  "name": "AG Data Saver Application",
  "description": "Application to manage the save sink events from the parser.",
  "version": "1.1",
  "minimum_chrome_version": "23",
  "icons": {
    "16": "icon_16.png"
  },
  "app": {
    "background": {
      "scripts": ["main.js"]
    }
  },
  "permissions": [{"fileSystem": ["write", "retainEntries", "directory"]},"storage"]
}
