TrueNAS - Pool - Add another vdev

It is generally recommended to add the same number of hard drives that the pool currently has.

  • Meaning that if you have four hard drives in your pool using RAIDz1, you can add four additional drives, create a Vdev and you will have two Vdevs that are both utilizing RAIDz1.
  • TrueNAS will also automatically balance the data between both Vdevs.

Add a vdev

Select Storage.

  • Navigate to the pool.
  • Select the gear icon
  • Select Add Vdevs.

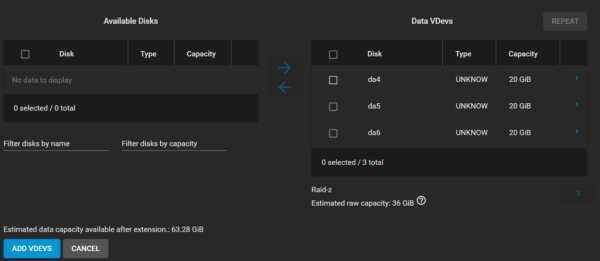

Add the hard drives to the vdev

  • Add the hard drives to the second Vdev.
  • Select Add VDEVS.
    • Depending on the RAID type being used, it will automatically be selected.

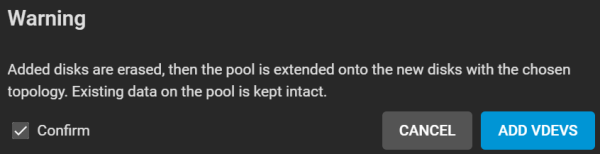

This will prompt for confirmation:

  • Select Confirm.
  • Select Add Vdev.

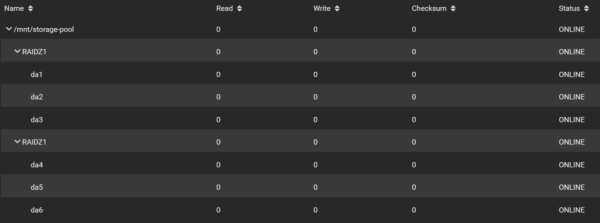

Check that the new vdev is okay

  • View the Pool Status.

NOTE: This should show both Vdevs!
