Pi-Hole - Setup Pi-Hole running in Docker and Portainer
Install Docker
curl -ssl https://get.docker.com | sh
Install Portainer
This is always one of the first container to pull and run, because like me you are lazy and cannot remember more than 2 lines of code.
Create a volume to host Portainer data
docker volume create portainer_data
returns
portainer_data
Install the Portainer Docker Image
docker run -d -p 9000:9000 -v /var/run/docker.sock:/var/run/docker.sock -v portainer_data:/data --restart always portainer/portainer
NOTE: This will run the container to pull, install and ensure it is always running.
Check that Portainer is running
docker ps

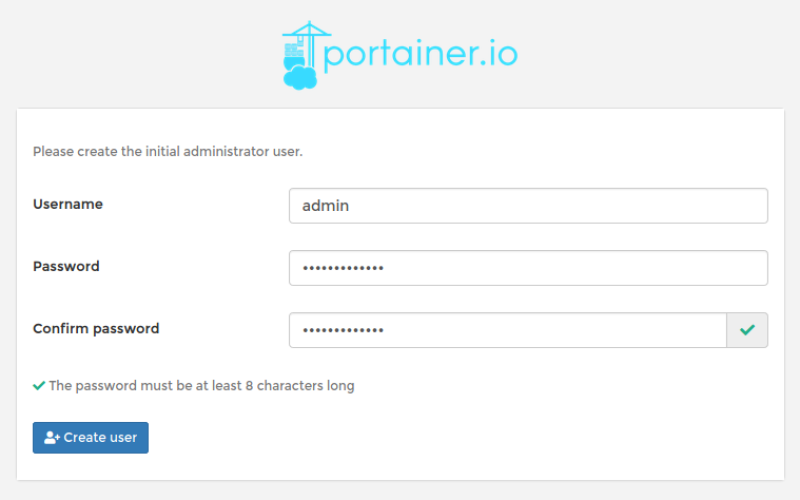

Configure Portainer
Navigate to http://yourdeviceip:9000.
Portainer will prompt you to set up a new password for your admin user.

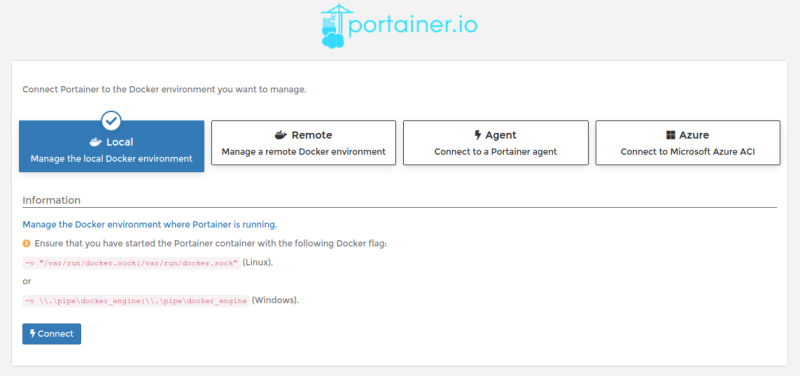

Connect Portainer to Docker
Click Local and Connect.
NOTE: If using a remote Docker then select the appropriate Remote option.
Select the local docker
Select your local docker:
Install Pi-hole as a new container
Add Container
Navigate to Containers.
Click Add Container.
Create Container
- Name: PiHole.
- image: pihole/pihole:latest.
- Publish all exposed network ports to random host ports: Disabled. Do not publish all exposed ports. Manually do it:
- 53:53/tcp.
- 53:53/udp.
- 67:67/udp.
- 80:80/tcp
- 443:443/tcp
Map some volumes
In Advanced container settings:
- Click on the Volumes tab.
- Click map additional volume.
- Container:
- /etc/dnsmasq.d.
- Bind.
- Host:
- /home/peter/pihole/dnsmasq.d.
- Bind.
- Click map additional volume.
- Container:
- /etc/pihole.
- Bind.
- Host:
- /home/peter/pihole/pihole.
- Bind.
NOTE: Bind mounts are used rather than standard volumes since that allows the location to the folder to be mapped instead of creating a volume in the Docker volumes folder.
The /home/peter/pihole/ directory will be automatically created.
Set up the network
This also sets the DNS the image should use.
In Advanced container settings:
- Click on the Network tab.
- Network: bridge.
- Hostname: pihole.
- Primary DNS Server: 127.0.0.1.
- Secondary DNS Server: 192.168.1.1.
NOTE: As of version 4.1.1 of Pi-Hole, the DNS server for the Docker container itself, localhost (127.0.0.1), must be set as the primary DNS server.
The secondary DNS server can be any other DNS server you prefer.
Set the Environment
Ensures that Pi-hole starts automatically.
In Advanced container settings:
- Click on the Env tab.
- Click Add environment variable.
- Name: TZ
- Value: Europe/Jersey.
- Click Add environment variable.
- Name: DNS1
- Value: 192.168.1.1.
- Click Add environment variable.
- Name: DNS2
- Value: 1.1.1.1.
- Click Add environment variable.
- Name: WEBPASSWORD
- Value: Password to use with Pi-Hole.
NOTE: Pi-hole will default to Google DNS Servers of 8.8.8.8 and 8.8.4.4 if the DNS1 or DNS2 environment variables are not set.
If only 1 upstream DNS server is wanted, put no as the value for the DNS2 variable, otherwise it will default to Google secondary DNS server 8.8.4.4.
It is recommended to have two upstream DNS servers in case one goes down.
Set the Restart Policy
Ensures that Pi-hole starts automatically.
In Advanced container settings:
- Click on the Restart Policy tab.
- Click Unless Stopped.
Deploy the Container
Click Deploy the Container.
