Pi-Hole - Setting up Pi-hole as a recursive DNS server

Unbound, a secure open-source recursive DNS server, will be used to:

Listen only for queries from the local Pi-hole installation (on port 5335).
Listen for both UDP and TCP requests.
Verify DNSSEC signatures, discarding BOGUS domains.
Apply a few security and privacy tricks.

NOTE: This assumes Pi-hole is already setup.

Install Unbound

Install the recursive DNS resolver

sudo apt update
sudo apt install unbound

NOTE: This should install the /var/lib/unbound/root.hints file automatically too.

The root.hints file, is a list of primary root servers.

If Unbound is not installed from a package manager:

The root.hints file may not be installed by default.

In this case, download the current root hints file by running:

wget https://www.internic.net/domain/named.root -qO- | sudo tee /var/lib/unbound/root.hints

If you do this optional step, you will need to uncomment the root-hints: line in the Unbound configuration file defined in the next step.
This file changes infrequently, but it is recommended to have it updated every six months or so.

Configure Unbound

/etc/unbound/unbound.conf.d/pi-hole.conf

server:
    # If no logfile is specified, syslog is used.
    # logfile: "/var/log/unbound/unbound.log"
    verbosity: 0

    interface: 127.0.0.1
    port: 5335
    do-ip4: yes
    do-udp: yes
    do-tcp: yes

    # May be set to yes if you have IPv6 connectivity.
    do-ip6: no

    # You want to leave this to no unless you have *native* IPv6. With 6to4 and
    # Terredo tunnels your web browser should favor IPv4 for the same reasons.
    prefer-ip6: no

    # Use this only when you downloaded the list of primary root servers!
    # If you use the default dns-root-data package, unbound will find it automatically.
    #root-hints: "/var/lib/unbound/root.hints"

    # Trust glue only if it is within the server's authority
    harden-glue: yes

    # Require DNSSEC data for trust-anchored zones, if such data is absent, the zone becomes BOGUS.
    harden-dnssec-stripped: yes

    # Don't use Capitalization randomization as it known to cause DNSSEC issues sometimes.
    # see https://discourse.pi-hole.net/t/unbound-stubby-or-dnscrypt-proxy/9378 for further details.
    use-caps-for-id: no

    # Reduce EDNS reassembly buffer size.
    # Suggested by the unbound man page to reduce fragmentation reassembly problems.
    edns-buffer-size: 1472

    # Perform prefetching of close to expired message cache entries.
    # This only applies to domains that have been frequently queried.
    prefetch: yes

    # One thread should be sufficient, can be increased on beefy machines.
    # In reality for most users running on small networks or on a single machine, it should be unnecessary to seek performance enhancement by increasing num-threads above 1.
    num-threads: 1

    # Ensure kernel buffer is large enough to not lose messages in traffic spikes.
    so-rcvbuf: 1m

    # Ensure privacy of local IP ranges.
    private-address: 192.168.0.0/16
    private-address: 169.254.0.0/16
    private-address: 172.16.0.0/12
    private-address: 10.0.0.0/8
    private-address: fd00::/8
    private-address: fe80::/10

NOTE: Unbound will listen on port 5335.

If the root-hints file was installed separately in the previous step, then uncomment the root-hints: configuration line in this config file.

See Logging about increasing logging verbosity.

Restart Unbound

sudo service unbound restart

Test that Unbound can resolve

dig pi-hole.net @127.0.0.1 -p 5335

NOTE: The first query may be quite slow, but subsequent queries should be faster due to caching.

Test DNSSEC validation

dig sigfail.verteiltesysteme.net @127.0.0.1 -p 5335
dig sigok.verteiltesysteme.net @127.0.0.1 -p 5335

NOTE:

The first command should give a status report of SERVFAIL and no IP address.
The second should give NOERROR plus an IP address.

Configure Pi-hole

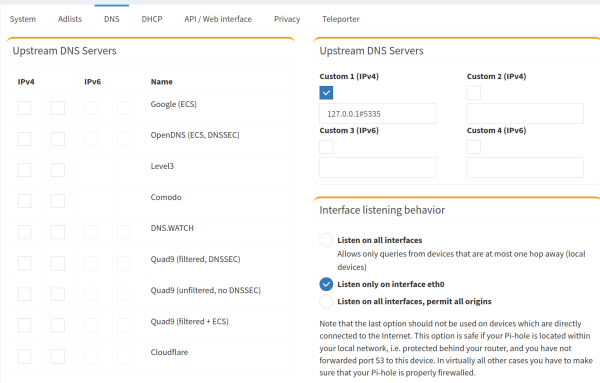

Navigate to Tools → Settings → DNS.

In Upstream DNS Servers:

Untick any pre-defined servers.
Change the Custom 1 (IPv4) to 127.0.0.1#5335.
Click Save.

NOTE: Pi-Hole should now be passing requests via Unbound.

Pi-Hole is listening on port 53.
Unbound will be listening on port 5335.

Disable resolvconf for unbound (optional)

The unbound package can come with a systemd service called unbound-resolvconf.service which is enabled by default. It instructs resolvconf to write unbound's own DNS service at nameserver 127.0.0.1, but without the 5335 port, into the file /etc/resolv.conf.

That /etc/resolv.conf file is used by local services/processes to determine configured DNS servers.

If you configured /etc/dhcpcd.conf with a static domain_name_servers= line, these DNS server(s) will be ignored/overruled by this service.

Check if unbound-resolvconf.service is enabled:

sudo systemctl status unbound-resolvconf.service

To disable this service if so desired:

sudo systemctl disable unbound-resolvconf.service
sudo systemctl stop unbound-resolvconf.service

To have the domain_name_servers= in the file /etc/dhcpcd.conf activated/propagate:

sudo systemctl restart dhcpcd

And check with below one if IP(s) on the nameserver line(s) reflects the ones in the /etc/dhcpcd.conf file:

cat /etc/resolv.conf
