PFSense - VPN - Use ExpressVPN - Configure DNS

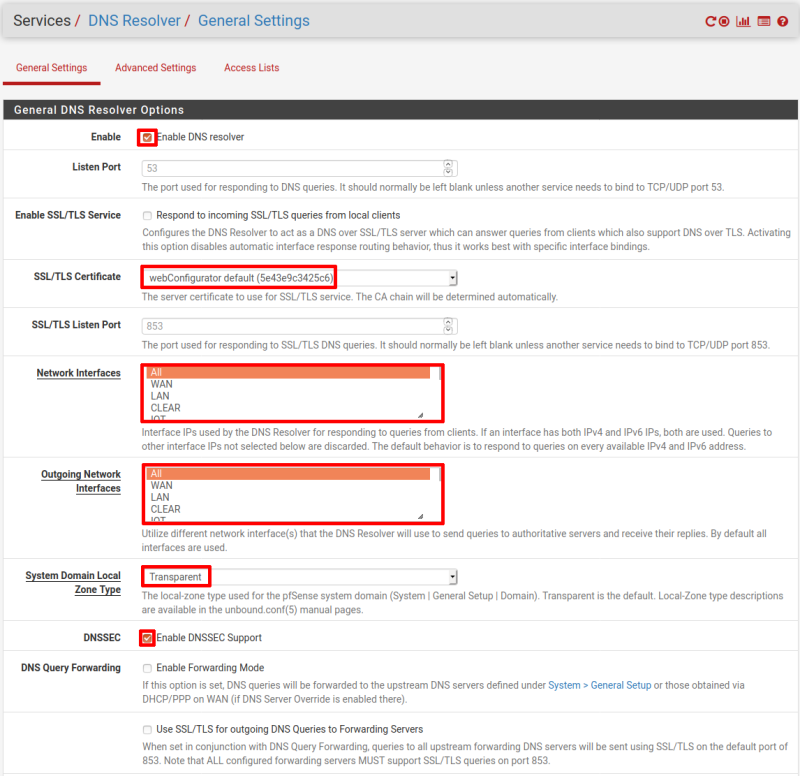

Navigate to Services → DNS Resolver.

In General Settings:

  • Enable: Checked.
  • Listen Port: Leave what it already is.
  • Enable SSL/TLS Service: Not Checked.
  • SSL/TLS Certificate: webConfigurator default (5e43e9c3425c6). The numbers on your machine could be different.
  • SSL/TLS Listen Port: Leave what it already is.
  • Network Interfaces: All.
  • Outgoing Network Interfaces: All.
  • System Domains Local Zone Type: Transparent.
  • DNSSEC: Not Checked.
  • DNS Query Forwarding: Checked.

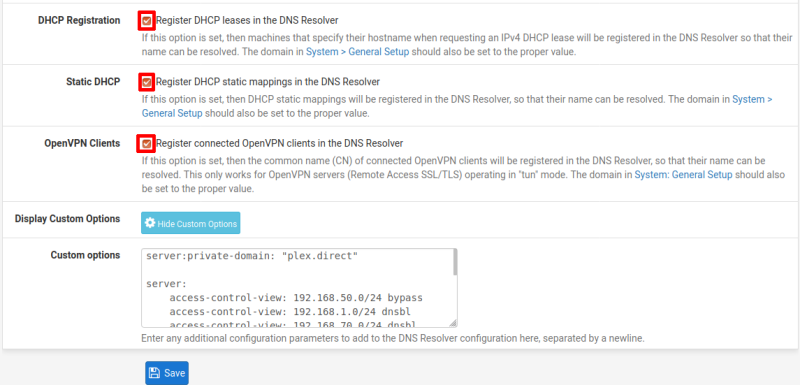

  • DHCP Registration: Checked.
  • Static DHCP: Checked.
  • OpenVPN Clients: Checked.
  • Click Save.

While in DNS Resolver, select Advanced Settings at the top.

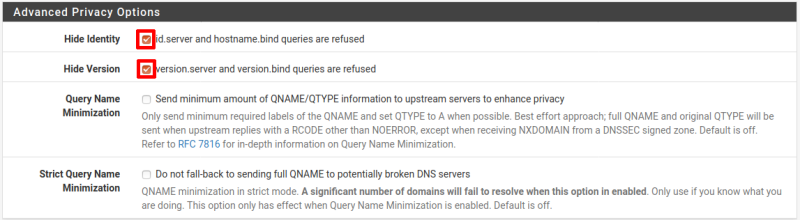

In Advanced Privacy Options:

  • Hide Identity: Checked.
  • Hide Version: Checked.
  • Query Name Minimization: Not Checked.
  • Strict Query Name Minimization: Not Checked.

In Advanced Resolver Options:

  • Prefetch Support: Checked.
  • Prefetch DNS Key Support: Checked.

Click Save.

Click Apply Changes.


Now that DNS is configured, return to Use ExpressVPN and do the next step: Configure Firewall.
